European Power Cords

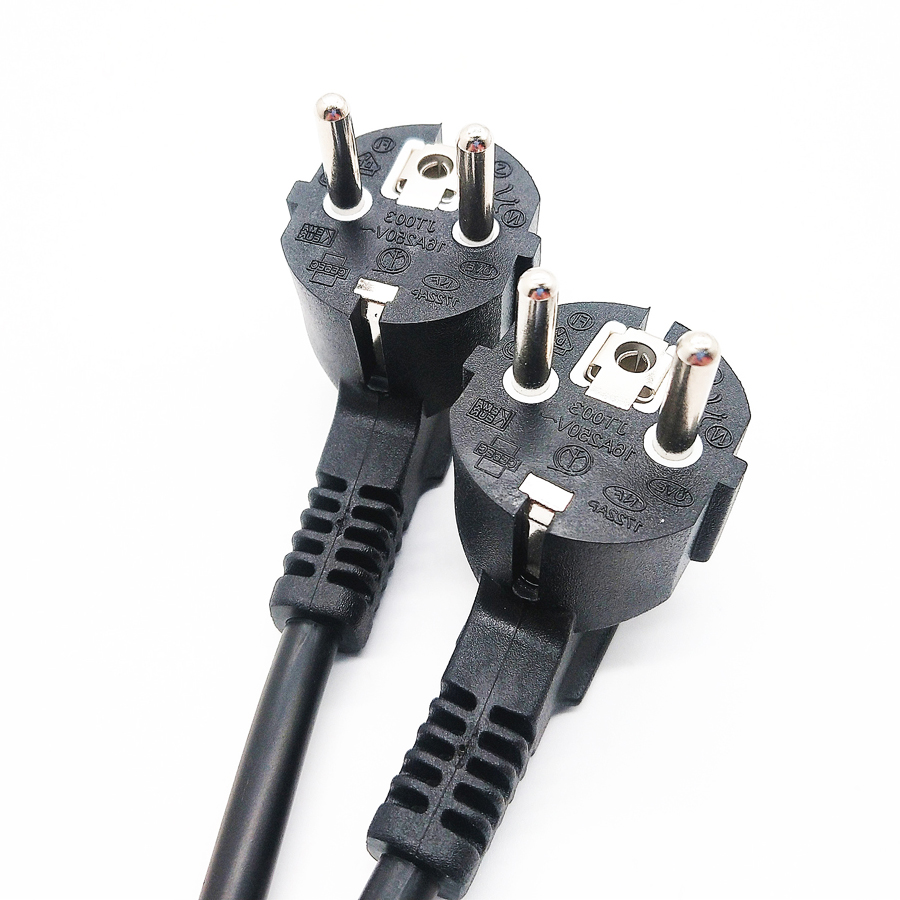

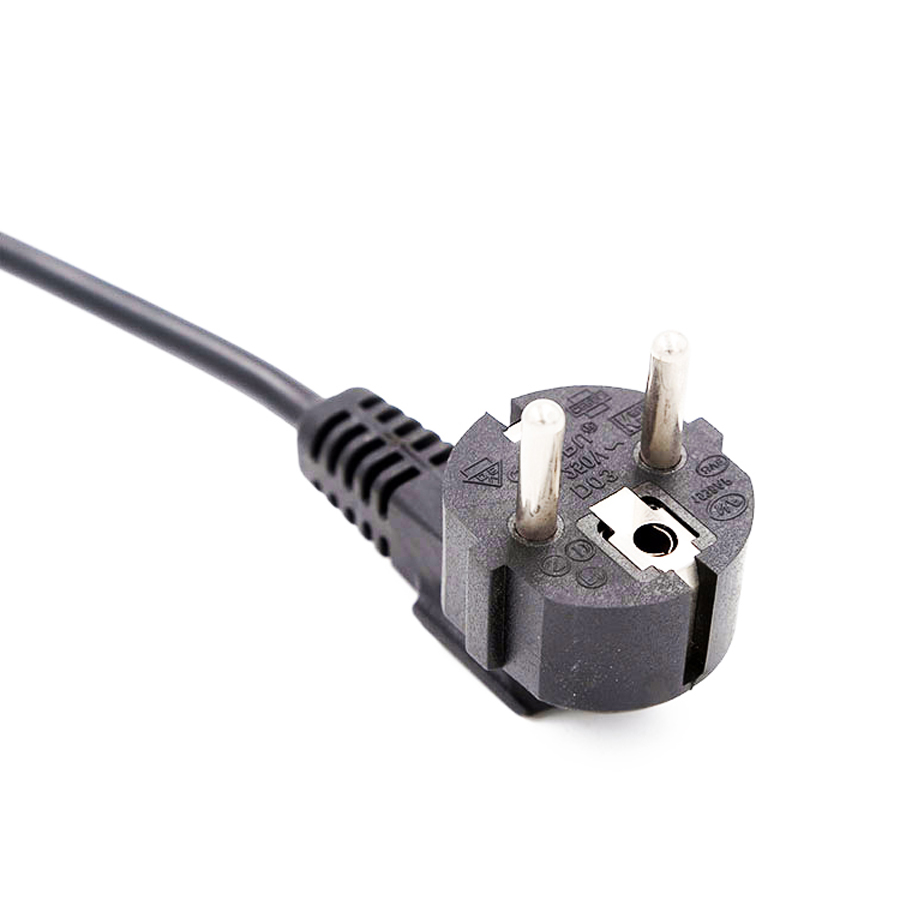

Europe Power Cords VDE SCHUKO Plug EU03

Europe Power Cords VDE SCHUKO Plug EU03
Certifications Approval and Compliances

SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    EU03
  • Group Model
  • Models Description
    4.8mm round contacts pin on 19mm center
  • Standard
    Standard DIN VDE 0620-1 IEC884-1 CEE7 DIN 49441-R2
  • Voltage
    250V
  • Amperage
    16A
  • Conductors
    3 Poles 3 Wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    32g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320 C13 / IEC 60320 C15 Plug
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value

    Degree of protection: IP 20

Available Wire Styles

Gauge/ # ConductorsCord TypeElectrical Rating (Amps/Volts)
3C*0.5mm2

H03VV-F

16A/250V
3C*0.75mm2

H05VV-F, H03RT-H

H05RR-F, H05RN-F

16A/250V
3C*1.0mm2

H05VV-F, H03RT-H

H05RR-F, H05RN-F, H07RN-F

16A/250V
3C*1.5mm2

H05VV-F

H05RR-F, H05RN-F, H07RN-F

16A/250V

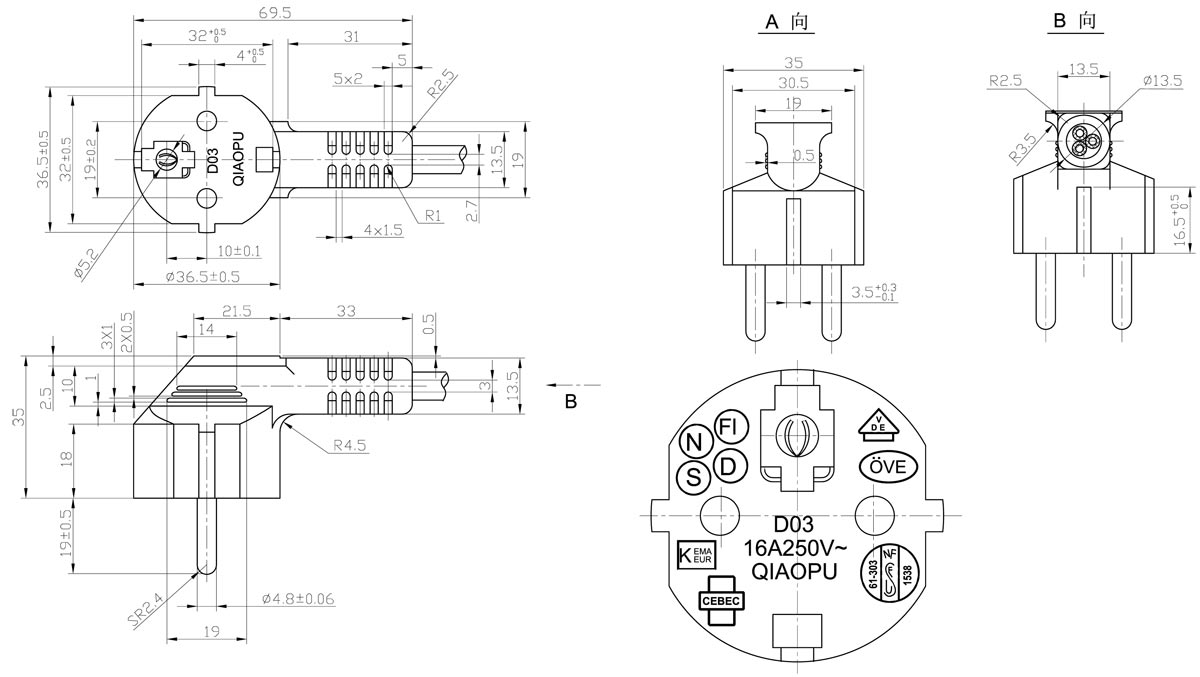

Drawing and More
