Korea Power Cords, KSC 8305 Plug, Type C, 2 Poles, KC Certified
Certifications Approval and Compliances
KC
KC

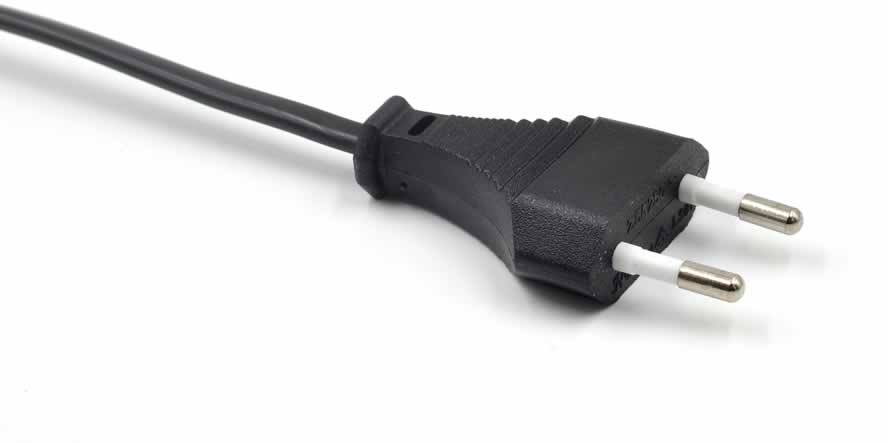

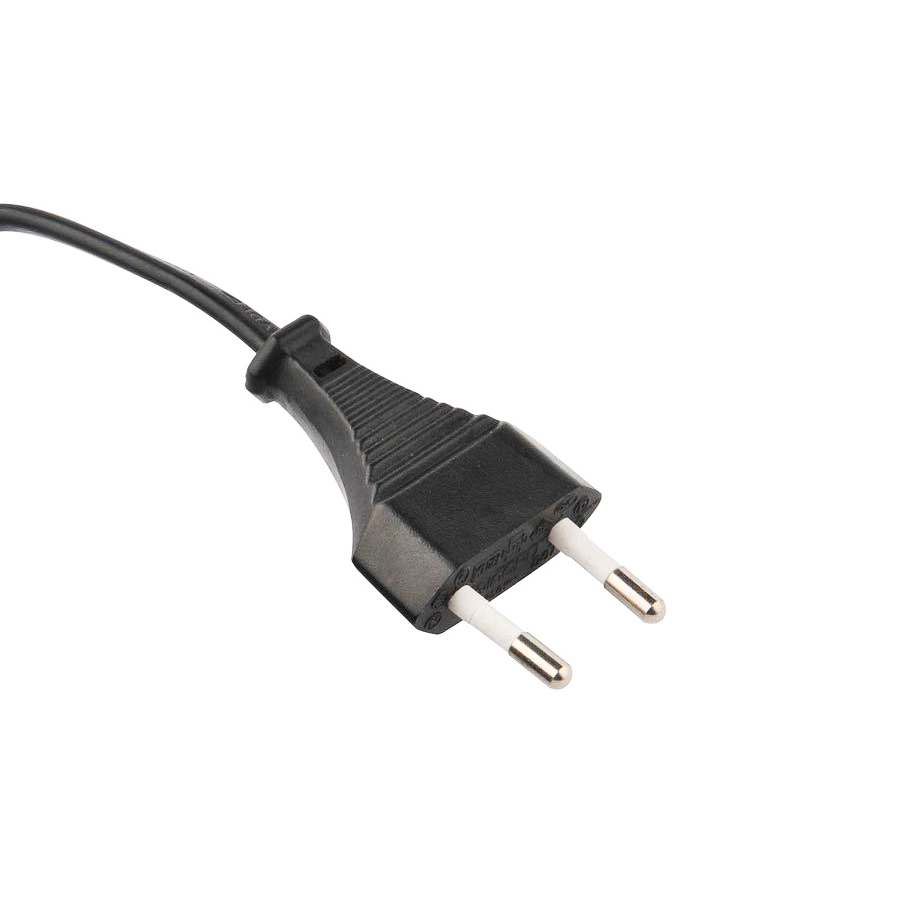

Korea Power Cords, KSC 8305 Plug, Type C, 2 Poles, KC Certified
Korea KC 2 pins KSC 8305 plug, Korea Power Supply Cords with KC Certified List.Built to KSC8305 Standards.
  • Samples date :
    1-7days,Free with freight collect
  • Delivery date :
    10-15 days
  • MOQ :
    6ft-3000pcs/4ft-5000pcs
  • Packing :
    Export cartons,pallets,Express box,User-Defined
  • Shipping :
    By Sea,By Air,By FedEx
  • Payment :
    Wire transfer
What is RoHS REACH PAHS of power cords

Inquiry
Message
Product Info
<< Back to Korea KC Power Cords
Description

Korea Power Cords, 10A 250V, Type C Plug. The Korea AC Cords according to KSC 8305 Standards with KC certification. Non-Rewirable Plug 2 poles without Earthing Contact Moulded with Non-rewirable Flexible Cords. This Korea Two prong Power Cords match cable for general applications include Flexible cables with thermoplastic PVC Insulation and Flexible cables with crosslinked elastomeric Rubber Insulation in Korea market. Our Korea Power Cords Products are fully molded with a low profile ergonomic design and RoHS and Reach compliant.

Features
The quality is good,Durable,Environmental protecti
Details

Europe Power Cord

Europe Power Cord

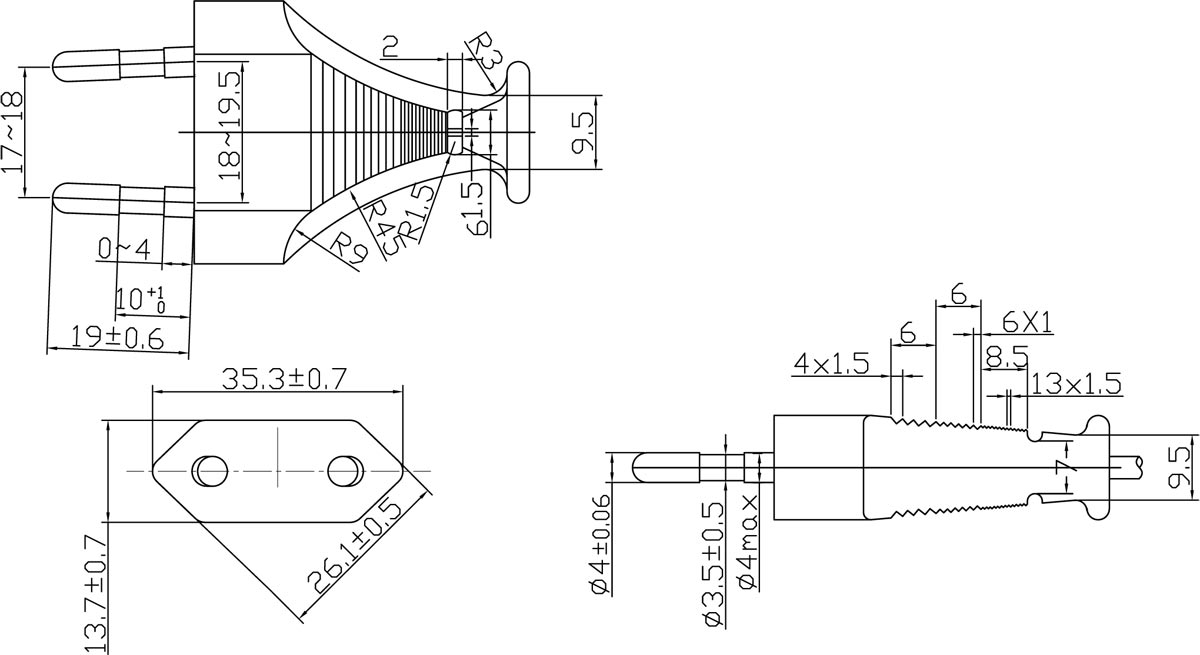

Korea Power Cords, KSC 8305 Plug, Type C, 2 Poles, KC Certified Drawing (RoHS COMPLIANT)

Korea Power Cords, KSC 8305 Plug, Type C, 2 Poles, KC Certified

K01/KC/KSC8305 (NINGBO NINGYANG)

End and connector

Korea Power Cords, KSC 8305 Plug, Type C, 2 Poles, KC Certified End Drawing (RoHS COMPLIANT)

Korea Power Cords, KSC 8305 Plug, Type C, 2 Poles, KC Certified

K01/KC/KSC8305 (NINGBO NINGYANG)

PVC Sheathed,Rubber Sheathed,Halogen-Free Sheathed

Korea Power Cords, KSC 8305 Plug, Type C, 2 Poles, KC Certified
Specifications
  • (Model)： K01
  • (Voltage): 250V
  • (Amperage): 2.5A
  • (Temperature Rating): 60°C
  • (Weight): 20g
  • (Color): User-Defined
  • (Cable Length): User-Defined
Material
  • (Plug Models Desc): Type 2P
  • (Plug Material): Nickel Coated Brass & PBT
  • (Cable Conductor Structure): 2 Poles 2 Wires
  • (Cable Insulating Sheath Material): PVC, Rubber, Halogen-Free, Textile braid,TPE,Silic
  • (Cable Conductor Material): Oxygen free copper (OFCU)
Quality
  • (Approvals): KC
  • (Standard): KSC8305
  • (Quality System): ISO9001:2008
  • (Testing): SGS/TUV
  • (Environmental): ROHS,REACH,PAHS
  • (Environmental mark): What is RoHS REACH PAHS of power cords
More and more
  • (Patent): NYC
  • (Country of Origin): Made in China
Available Cord / Cables Wire Styles

  • H03VVH2-F 2x 0,5 mm²(max. 2 m) , H03VVH2-F 2x 0,75 mm²
    H03VV-F 2x 0,5 mm²(max. 2 m) , H03VV-F 2x 0,75 mm²
    H05VVH2-F 2x 0,75 mm² , H05VVH2-F 2x 1,0 mm²
    H05VV-F 2x 0,75 mm² ,H05VV-F 2x 1,0 mm² ,H05VV-F 2x 1,5 mm²
    H05V2V2H2-F 2x 0,75 mm² , H05V2V2H2-F 2x 1,0 mm²
    H05RR-F 2x 0,75 mm² , H05RR-F 2x 1,0 mm² , H05RR-F 2x 1,5 mm²
    H05RN-F 2x 0,75 mm² , H05RN-F 2x 1,0 mm²
    H07RN-F 2x 1,0 mm² , H07RN-F 2x 1,5 mm²
    H03RT-H 2x 0,75 mm² , H03RT-H 2x 1,0 mm²

Sea and air freight
Korea Power Cords, KSC 8305 Plug, Type C, 2 Poles, KC Certified Sea and air freight
Free sample
Korea Power Cords, KSC 8305 Plug, Type C, 2 Poles, KC Certified Free sample
PDF Support
Korea Power Cords, KSC 8305 Plug, Type C, 2 Poles, KC Certified.PDF Support
