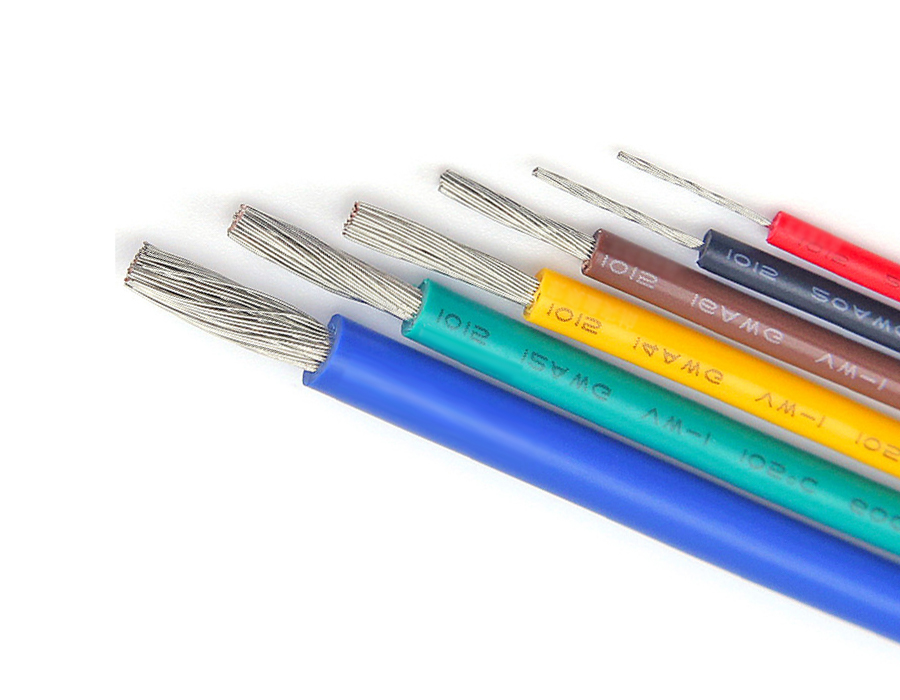

Wire UL cUL AWM 1011 HOOK-UP WIRES Cables
Certifications Approval and Compliances
UL
Wire UL cUL AWM 1011 HOOK-UP WIRES Cables
AWM 1007 PVC Insulated Single Cords Rating:600V 105 Standard:UL758 CSA-C22.2 AWM 1061 PVC Insulated Single Cords Rating:300V 80 Standard:UL758 CSA-C22.2
  • Samples date :
    1-7days,Free with freight collect
  • Delivery date :
    3000PCS12~15day
  • MOQ :
    3000pcs/5000pcs
  • Packing :
    Export cartons,pallets,Express box
  • Shipping :
    By Sea,Air,TNT,FedEx
  • Payment :
    100%TT
What is RoHS REACH PAHS of power cords

Inquiry
Message
Product Info
<< Back to AWM Wire
Description
AWM 1007 PVC Insulated Single Cords Rating:600V 105 Standard:UL758 CSA-C22.2 AWM 1061 PVC Insulated Single Cords Rating:300V 80 Standard:UL758 CSA-C22.2
Features
The quality is good,Durable,Environmental protecti
Details

41544256.jpgO1CN01SmbFbG1DYT1Pl5Fwc_!!2948570228-0-cib.jpg73018120.jpg80219595.jpgAWM 101592093842.jpg1329348.jpg67470788.webp51881352.png79441776.jpg43488225.png55948285.png16957160.gif

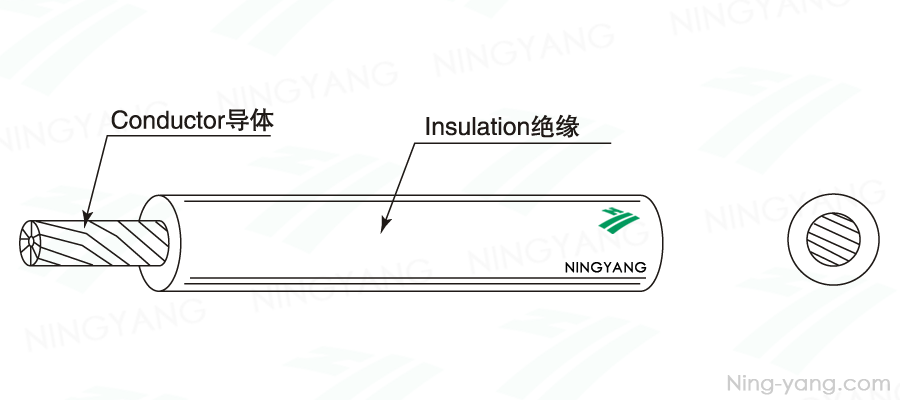

Wire UL cUL AWM 1011 HOOK-UP WIRES Cables Drawing (RoHS COMPLIANT)

Wire UL cUL AWM 1011 HOOK-UP WIRES Cables

UL 1011//UL758 UL1581 (NINGBO NINGYANG)

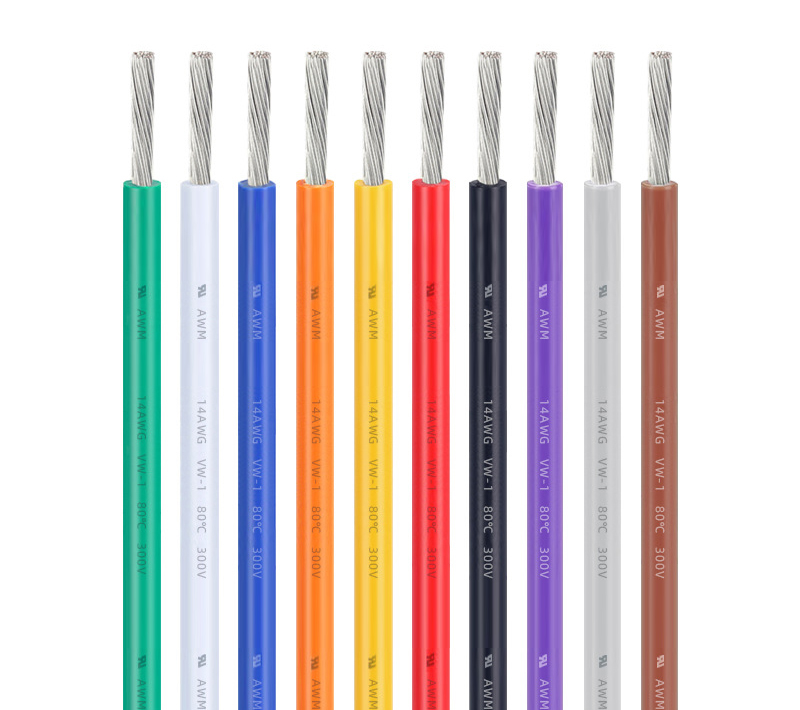

(Print wheel)印轮: RU AWM 2464 16~32AWG VW-1 80℃ 300V E225383 NINGYANG CRU AWM I/A 16-32AWG FT1 80℃ 300V -F-LF
End and connector

Wire UL cUL AWM 1011 HOOK-UP WIRES Cables End Drawing (RoHS COMPLIANT)

Wire UL cUL AWM 1011 HOOK-UP WIRES Cables

UL 1011//UL758 UL1581 (NINGBO NINGYANG)


Specifications
  • Model : UL 1011
  • Voltage : 300V
  • Amperage : 10A
  • Temperature Rating : 80℃
  • Weight : 36g
  • Color : Black is standard but any color available
  • Cable Length : 305M/Reel、610M/Reel
Material
  • Models Desc : 1-Conductor 1-Insulation
  • Conductor Structure : 32AWG~16AWG
  • Insulating Sheath Material : PVC, Rubber, Halogen-Free, Textile braid

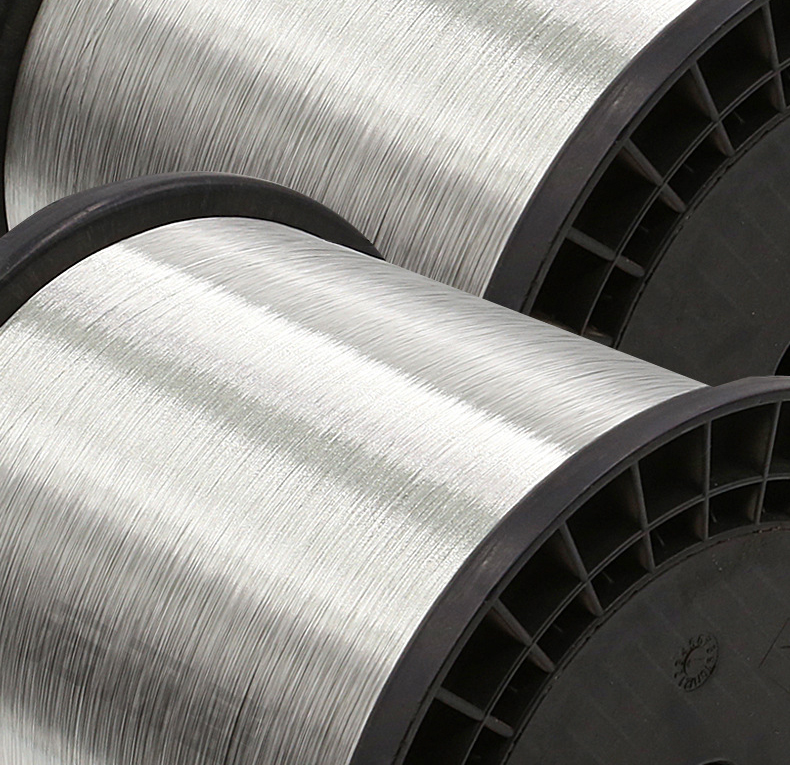

  • Conductor Material : Oxygen free copper (OFCU)
Quality
  • Approvals : UL
  • Standard : UL758 UL1581
  • Antiflaming : PVC, Rubber, Halogen-Free, Textile braid
  • Quality System : ISO9001:2008
  • Testing : SGS/TUV
  • Environmental : ROHS,REACH,PAHS
  • Environmental mark : What is RoHS REACH PAHS of power cords
More and more
  • Patent : NY
  • Country of Origin : Ningbo China

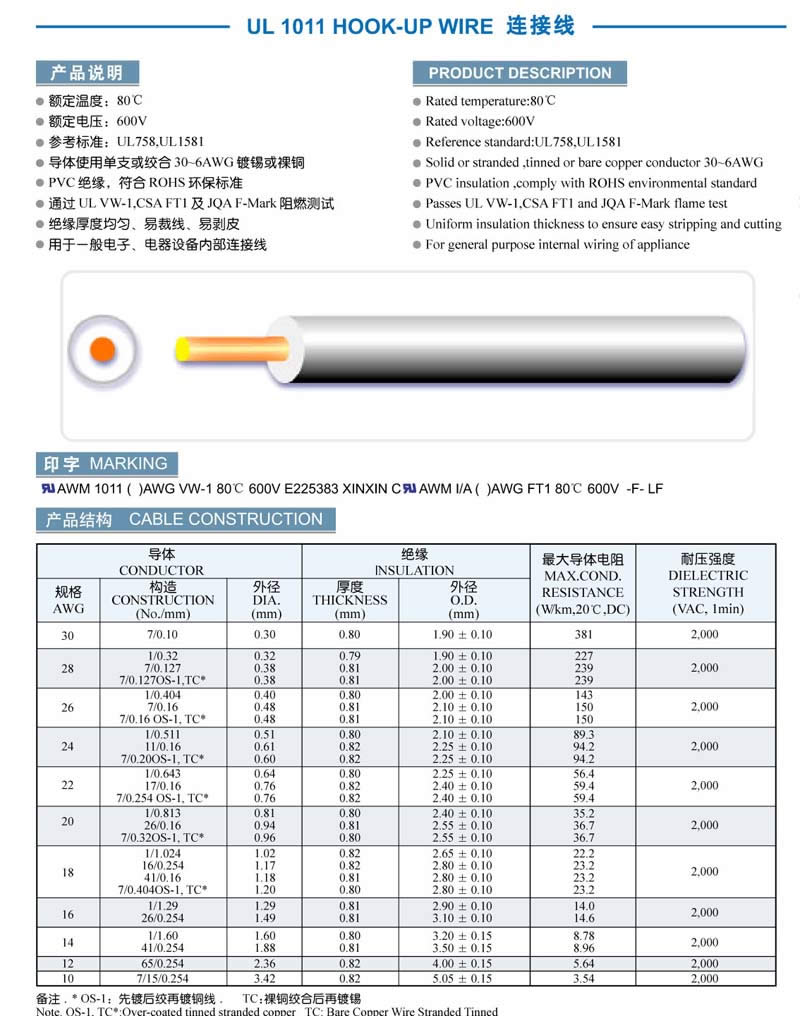

Available Cord / Cables Wire Styles
Conductor
InsuIation Thickness Overall Diameter Maximum Resistance at 20℃
AWGNo. /mm mm mm mm ohm/km
28 7/0.127 0.38 0.79 2.00 223
26 7/0.16 0.48 0.82 2.12 139
24 11/0.16 0.61 0.79 2.20 89
22 17/0.16 0.76 0.82 2.40 57.5
20 26/0.16 0.94 0.82 2.55 34.6
18 16/0.254 1.16 0.82 2.80 23.3
16 26/0.254 1.49 0.79 3.07 15.1
14 41/0.254 1.87 0.79 3.45 9.2
12 65/0.254 2.36 0.79 3.94 5.4
10 66/0.32 3.00 0.79 4.56 4.1
