Patch type connector HX12500-HX12501-(1.25 SMT)

Certifications Approval and Compliances

JIS JET CCC SGS

Patch type connector HX12500-HX12501-(1.25 SMT)

Samples date :
1-7days,Free with freight collect
Delivery date :
1-7 days
MOQ :
6ft-3000pcs/4ft-5000pcs
Packing :
Export cartons,pallets,Express box
Shipping :
By Sea,Air,TNT,FedEx
Payment :
Wire Transfer

Inquiry

Message

Product Info

<< Back to Patch type connector

Description

Patch type connector HX12500-HX12501-(1.25 SMT)

Features

The quality is good, Durable, Environmental protec

Details

Specifications

(Model): HX12500-HX12501-(1.25 SMT)
(Voltage): 250V AC/DC
(Withstandvoltage): 800V AC/1min
(Amperage): 10A 20A 30A 40A 50A 60A 100A 200A
(Contact resistance): ≤0.02Ω
(Insulation resistance): ≥1000MΩ
(Temperaturerange): -25℃~80℃
(Color): Coppery Silver

Material

(Models Desc): Bareness pre insulation
(Material Structure): Bareness pre insulation
(Skin Material): Tinning/Nickel plating
(Conductor Material): Oxygen-free copper/Orichalcum
(Insulating Material): PVC PA66
(Plug housing): PA66 UL94V-0
(Receptacle housing): PA66 UL94V-0
(Wafer): PA66 UL94V-2(0)
(Terminal): Phos.bronze Tin/plated

Quality

(Approvals): JIS JET CCC SGS
(Standard): JIS
(Quality System): ISO9001:2008
(Testing): SGS
(Environmental): ROHS,REACH,PAHS,SGS,TUV
(Environmental mark):

More and more

(Patent): NYC
(Country of Origin): Zhejiang China

Sea and air freight

Free sample

PDF Support

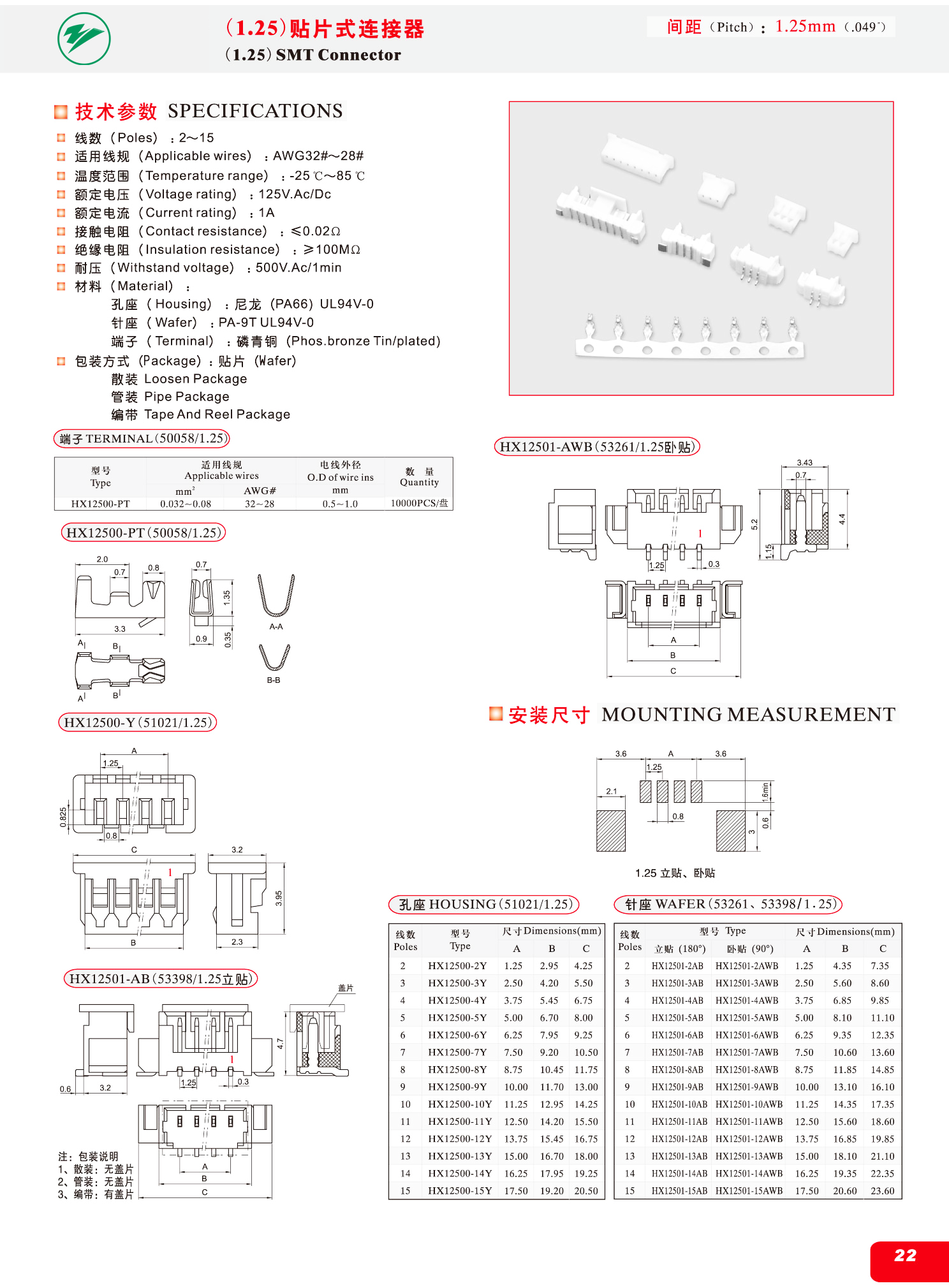

Patch type connector HX12500-HX12501-(1.25 SMT).PDF Support
