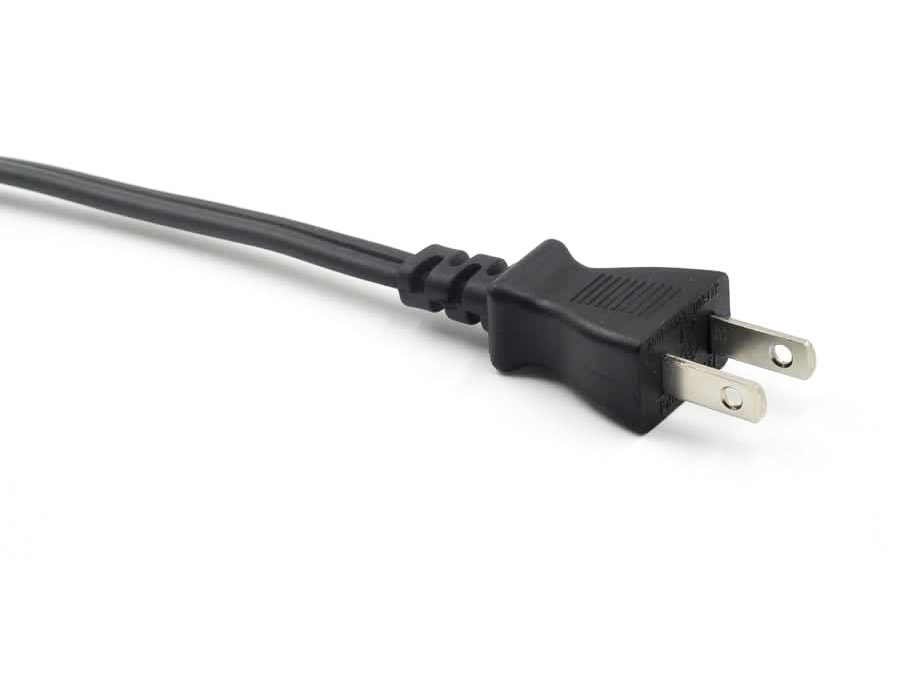

PSE JET Power cord 2p plug FH-20A

PSE JET Power cord 2p plug FH-20A
Certifications Approval and Compliances

FH-20A
Inquiry Now
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    FH-20A
  • Group Model
  • Models Description
    PVC PLUG TYPE 2P
  • Standard
    ACCORDING TO JAPAN SPECIFICATION JIS C8303
  • Voltage
    125V
  • Amperage
    7A-12A-15A
  • Conductors
    2P
  • Jacket Material
    PVC Sheathed
  • Temperature Rating
    60C
  • Plug Weight
    26g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    Plug
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value
Available Wire Styles

TYPE CABLE    SEC. MM2

HVCTFK      2X0.75-2.0

HVCTF       2X0.75-2.0

HVFF        2X0.75-2.0

VCT         2X0.75-2.0

VCTFK       2X0.75-2.0

VCTF        2X0.75-2.0

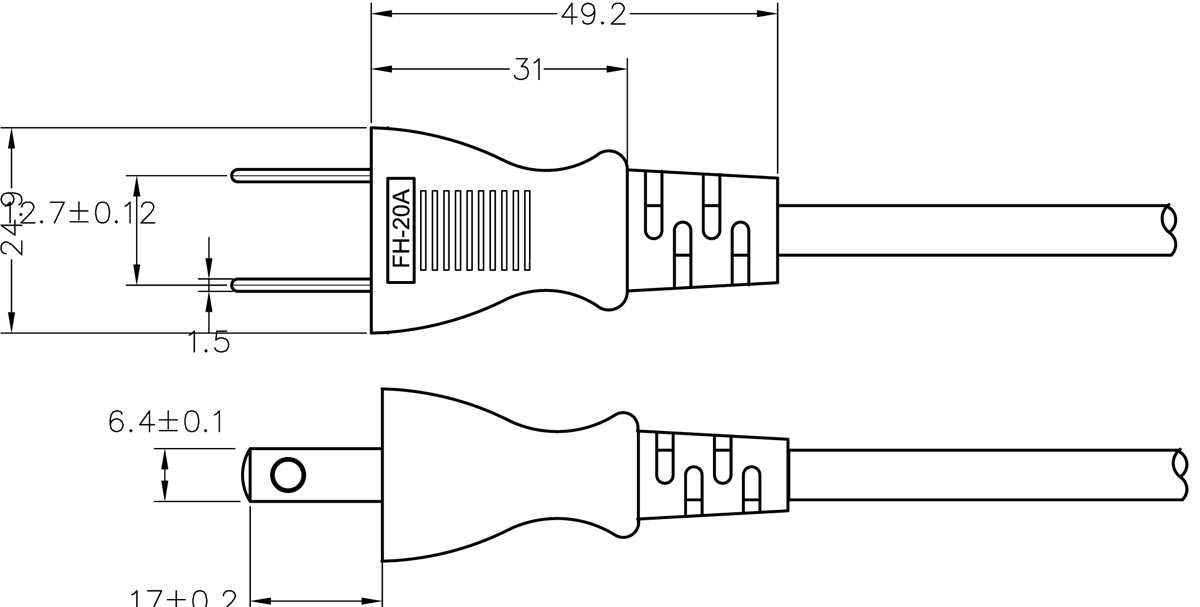

Drawing and More
