Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5
Certifications Approval and Compliances
IMQ
IMQ
Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5
Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5 Italy CEI 23-16 2P+T 10A Plug to IEC 60320 C5 Power Cord
  • Samples date :
    1-7days,Free with freight collect
  • Delivery date :
    15-22 days
  • MOQ :
    6ft-3000pcs/4ft-5000pcs
  • Packing :
    Export cartons,pallets,Express box
  • Shipping :
    By Sea,Air,TNT,FedEx
  • Payment :
    Wire Transfer
What is RoHS REACH PAHS of power cords

Inquiry
Message
Product Info
<< Back to Italy IMQ Power cords
Description

Italian standard CEI23-16 Plug to IEC 60320 C5 Connector Power Cord with IMQ / VDE Approved is often referred to as the "Clover Type Power Cable ~ Cloverleaf ~ Mickey Mouse Laptop / Notebook / Notepad Power Adapter ~ Lead ~ Mains ~ IEC power cord receptacle. These IEC C5 power cords are commonly used in a variety of applications including electric computer,projector, portable electronics, notebook computers and game systems.all of our plugs and socket Italy are fully molded with high quality and RoHS / REACH compliant.


Features
The quality is good,Durable,Environmental protecti
Details

Italy Plug IMQ Power cordItaly Plug IMQ Power cordItaly Plug IMQ Power cordItaly Plug IMQ Power cordItaly Plug IMQ Power cord

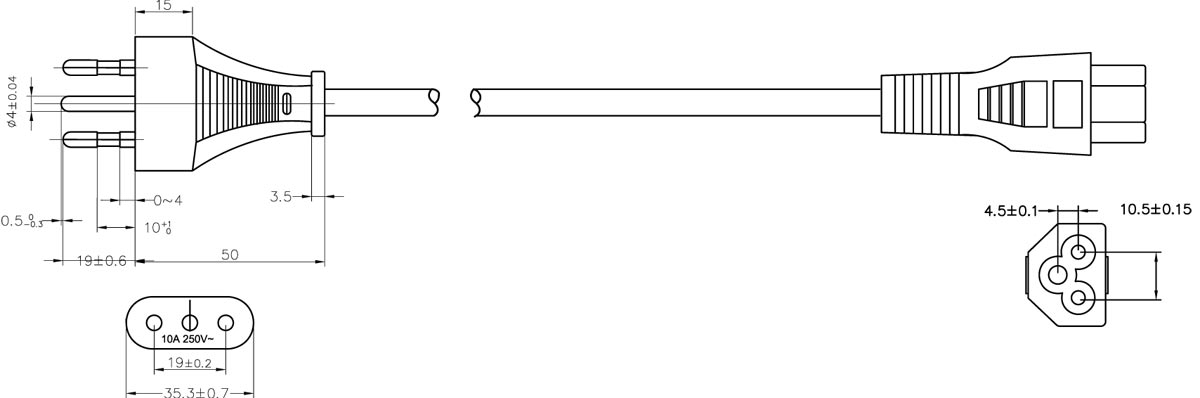

Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5 Drawing (RoHS COMPLIANT)

Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5

IMQ02 C5/IMQ/CEI 23-50, IEC 60320 C5 (NINGBO NINGYANG)

End and connector

Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5 End Drawing (RoHS COMPLIANT)

Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5

IMQ02 C5/IMQ/CEI 23-50, IEC 60320 C5 (NINGBO NINGYANG)

Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5
Specifications
  • (Model)： IMQ02 C5
  • (Voltage): 250V
  • (Amperage): 7.5A
  • (Temperature Rating): 60°C
  • (Weight): 20g-50g
  • (Color): User-defined
  • (Cable Length): User-defined
Material
  • (Plug Models Desc): Type 2P
  • (Plug Material): Nickel Coated Brass & PBT
  • (Cable Conductor Structure): 2 Poles 2 Wires
  • (Cable Insulating Sheath Material): PVC, Rubber, Halogen-Free, Textile braid,TPE,Silic
  • (Cable Conductor Material): Oxygen free copper (OFCU)
Quality
  • (Approvals): IMQ
  • (Standard): CEI 23-50, IEC 60320 C5
  • (Quality System): ISO9001:2008
  • (Testing): SGS/TUV
  • (Environmental): ROHS,REACH,PAHS
  • (Environmental mark): What is RoHS REACH PAHS of power cords
More and more
  • (Patent): NYC
  • (Country of Origin): Made in China
Available Cord / Cables Wire Styles

  • 3x0.5mm² H03VV-F

    3x0.75mm² H03VV-F, H05VV-F, H05RR-F, H05RN-F, H03RT-H, H05V2V2-F

    3x1.0mm² H05VV-F, H05RR-F, H05RN-F, H03RT-H, H05V2V2-F, H07RN-F

    3x1.5mm² H05VV-F, H05RR-F, H05RN-F, H03RT-H, H05V2V2-F, H07RN-F


Sea and air freight
Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5 Sea and air freight
Free sample
Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5 Free sample
PDF Support
Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5.PDF Support
