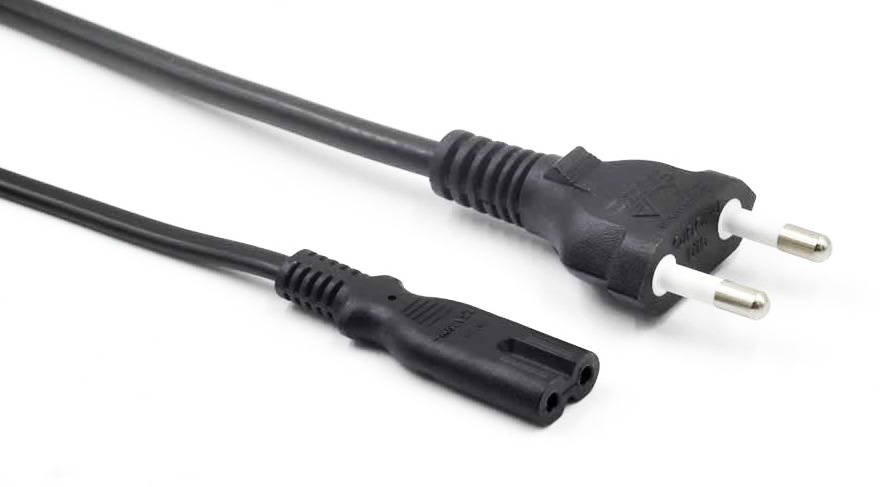

Brazil Power Cords INMETRO Plug UC04 IEC 60320 C7
Certifications Approval and Compliances
INMETRO UC
INMETRO UC
Brazil Power Cords INMETRO Plug UC04 IEC 60320 C7
Brazil Power Cords INMETRO Plug UC04 IEC 60320 C7 Brazil Power Cords, NBR 14136 Plug to IEC 60320 C7 Connector, Type C, 2 poles Plug, INMETRO Certified
  • Samples date :
    1-7days,Free with freight collect
  • Delivery date :
    15-22 days
  • MOQ :
    6ft-3000pcs/4ft-5000pcs
  • Packing :
    Export cartons,pallets,Express box
  • Shipping :
    By Sea,Air,TNT,FedEx
  • Payment :
    Wire Transfer
What is RoHS REACH PAHS of power cords

Inquiry
Message
Product Info
<< Back to Brazil UC Power Cords
Description

Brazil Power Cords, 2.5A 250V, Type C Plug to IEC 60320 C7 Connector. The Brazil AC Cords according to NBR 14136 Standards with INMETRO certification. Non-Rewirable Plug 2 poles without Earthing Contact Moulded with Non-rewirable Flexible Cords. This Brazil Two prong Power Cords match cable for general applications include Flexible cables with thermoplastic PVC Insulation and Flexible cables with crosslinked elastomeric Rubber Insulation in Brazil market. Our Brazil Power Cords Products are fully molded with a low profile ergonomic design and RoHS and Reach compliant.

Features
The quality is good,Durable,Environmental protecti
Details


Brazil Power Cords INMETRO Plug UC04 IEC 60320 C7 Drawing (RoHS COMPLIANT)

Brazil Power Cords INMETRO Plug UC04 IEC 60320 C7

UC04 IEC 60320 C7/INMETRO UC/NBR 14136, IEC 60320 C7 (NINGBO NINGYANG)

End and connector

Brazil Power Cords INMETRO Plug UC04 IEC 60320 C7 End Drawing (RoHS COMPLIANT)

Brazil Power Cords INMETRO Plug UC04 IEC 60320 C7

UC04 IEC 60320 C7/INMETRO UC/NBR 14136, IEC 60320 C7 (NINGBO NINGYANG)

Brazil Power Cords INMETRO Plug UC04 IEC 60320 C7
Specifications
  • (Model)： UC04 IEC 60320 C7
  • (Voltage): 250V
  • (Amperage): 10A
  • (Temperature Rating):
  • (Weight): 20g-50g
  • (Color): User-defined
  • (Cable Length): User-defined
Material
  • (Plug Models Desc): Type 2P
  • (Plug Material): Nickel Coated Brass & PBT
  • (Cable Conductor Structure): 2 Poles 2 Wires
  • (Cable Insulating Sheath Material): PVC, Rubber, Halogen-Free, Textile braid,TPE,Silic
  • (Cable Conductor Material): Oxygen free copper (OFCU)
Quality
  • (Approvals): INMETRO UC
  • (Standard): NBR 14136, IEC 60320 C7
  • (Quality System): ISO9001:2008
  • (Testing): SGS/TUV
  • (Environmental): ROHS,REACH,PAHS
  • (Environmental mark): What is RoHS REACH PAHS of power cords
More and more
  • (Patent): NYC
  • (Country of Origin): Made in China
Available Cord / Cables Wire Styles

  • 3x0.5mm²H03VV-F, H05VV-F, H05RR-F, H05RN-F

    3x0.75mm² H03VV-F, H05VV-F, H05RR-F, H05RN-F, H05V2V2-F

    3x1.00mm² H05VV-F, H05RR-F, H05RN-F, H05V2V2-F

    3x1.5mm²H05VV-F, H05RR-F, H05RN-F, H05V2V2-F, H07RN-F


Sea and air freight
Brazil Power Cords INMETRO Plug UC04 IEC 60320 C7 Sea and air freight
Free sample
Brazil Power Cords INMETRO Plug UC04 IEC 60320 C7 Free sample
PDF Support
Brazil Power Cords INMETRO Plug UC04 IEC 60320 C7.PDF Support
