- Samples date :1-7days,Free with freight collect
- Delivery date :15-22 days
- MOQ :6ft-3000pcs/4ft-5000pcs
- Packing :Export cartons,pallets,Express box
- Shipping :By Sea,Air,TNT,FedEx
- Payment :Wire Transfer
NBR 6147 NBR 14136 Brazil 3 conductor grounded AC power supply cord plug with UC InMetro certification Rated up to 20A 250V Built to NBR 14136 standards and designed for Brazilian household application power supply connections, NBR 14136 to C5 NBR 14136 to C13 NBR 14136 to C15 NBR 14136 to C19 describe Brazilian plug molded with international power connectors. Our Brazilian NBR14136 power supply cords products are fully molded with high quality and RoHS / REACH compliant.

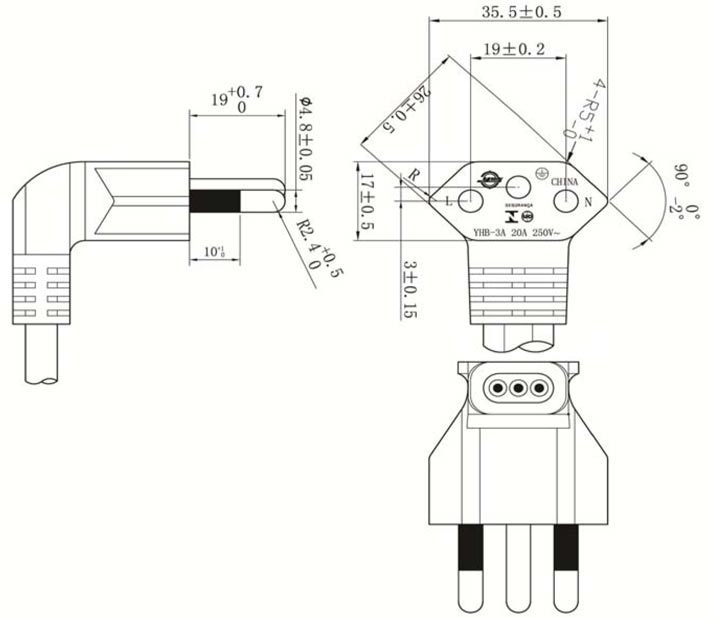

Brazil Plug INMETRO Power Cords UC06 Drawing (RoHS COMPLIANT)
UC06/INMETRO UC/NBR 14136 (NINGBO NINGYANG)
Brazil Plug INMETRO Power Cords UC06 End Drawing (RoHS COMPLIANT)
UC06/INMETRO UC/NBR 14136 (NINGBO NINGYANG)
- (Model)： UC06
- (Voltage): 250V
- (Amperage): 10A
- (Temperature Rating): 60°C
- (Weight): 20g-50g
- (Color): User-defined
- (Cable Length): User-defined
- (Plug Models Desc): Type 2P-E
- (Plug Material): Nickel Coated Brass & PBT
- (Cable Conductor Structure): 3 Poles 3 Wires
- (Cable Insulating Sheath Material): PVC, Rubber, Halogen-Free, Textile braid,TPE,Silic
- (Cable Conductor Material): Oxygen free copper (OFCU)
- (Approvals): INMETRO UC
- (Standard): NBR 14136
- (Quality System): ISO9001:2008
- (Testing): SGS/TUV
- (Environmental): ROHS,REACH,PAHS
- (Environmental mark):
- (Patent): NYC
- (Country of Origin): Made in China
3x0.5mm² H03VV-F, H05VV-F, H05RR-F, H05RN-F
3x0.75mm² H03VV-F, H05VV-F, H05RR-F, H05RN-F, H05V2V2-F
3x1.00mm² H05VV-F, H05RR-F, H05RN-F, H05V2V2-F
3x1.5mm² H05VV-F, H05RR-F, H05RN-F, H05V2V2-F, H07RN-F
