- Samples date :1-7days,Free with freight collect
- Delivery date :15-22 days
- MOQ :6ft-3000pcs/4ft-5000pcs
- Packing :Export cartons,pallets,Express box
- Shipping :By Sea,Air,TNT,FedEx
- Payment :Wire Transfer
NBR 6147 Brazil 2 conductor plug power cord with UC InMetro certification Rated up to 16A 250V. Built to NBR NBR 6147 standard and designed for Brazil 2 prong Non-ground household applications power connections,NBR 6147 to IEC C7 describe Brazilian plug molded with IEC 60320 connectors, Our Brazilian standard AC power cables,plugs,sockets products are fully molded with high quality and RoHS/REACH compliant.

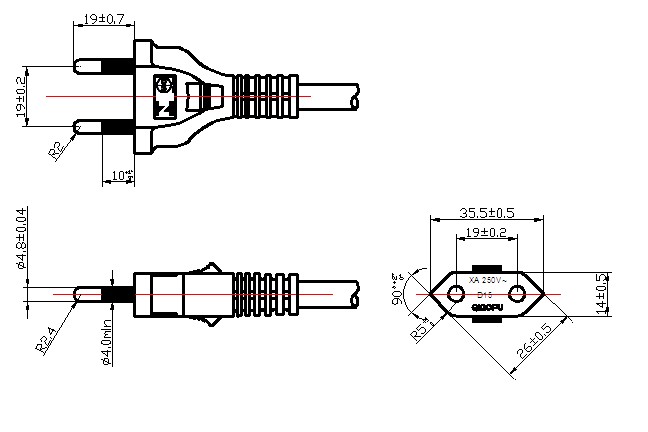

Brazil Power Cords UC Approval UC02 Drawing (RoHS COMPLIANT)
UC02/INMETRO UC/NBR 14136 (NINGBO NINGYANG)
Brazil Power Cords UC Approval UC02 End Drawing (RoHS COMPLIANT)
UC02/INMETRO UC/NBR 14136 (NINGBO NINGYANG)
- (Model)： UC02
- (Voltage): 250V
- (Amperage): 10A
- (Temperature Rating): 60°C
- (Weight): 20g-50g
- (Color): User-defined
- (Cable Length): User-defined
- (Plug Models Desc): Type 2P-E
- (Plug Material): Nickel Coated Brass & PBT
- (Cable Conductor Structure): 3 Poles 3 Wires
- (Cable Insulating Sheath Material): PVC, Rubber, Halogen-Free, Textile braid,TPE,Silic
- (Cable Conductor Material): Oxygen free copper (OFCU)
- (Approvals): INMETRO UC
- (Standard): NBR 14136
- (Quality System): ISO9001:2008
- (Testing): SGS/TUV
- (Environmental): ROHS,REACH,PAHS
- (Environmental mark):
- (Patent): NYC
- (Country of Origin): Made in China
2x0.5mm² H03VV-F, H03VVH2-F
2x0.75mm² H03VV-F, H03VVH2-F, H05VV-F, H05VVH2-F, H05RR-F, H05RN-F, H05V2V2-F
2x1.0mm² H05VV-F, H05VVH2-F, H05RR-F, H05RN-F, H05V2V2-F
- AC Power cords
- DC Power cords
- Power Extension cords
- Cables
- Cord sets
- Wiring Harness
- Terminal connector
- Transformer and Parts
