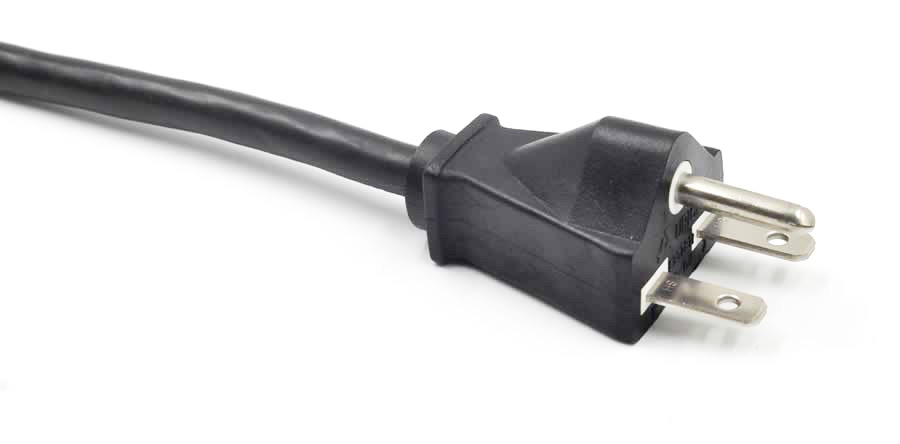

American Power Cords NEMA 6-15P
Certifications Approval and Compliances
UL/CUL
UL/CUL
American Power Cords NEMA 6-15P
Plug and Connector American UL 3 pins NEMA 5-15P plug, American Power Supply Cords with UL Certified List. Built to NEMA 5-15P CSA CAN/CSA-22.2 No.21-95 standards. Rated up to 10A, 13A, 15A 125V. Our USA NEMA 5-15P Plug, Ameri
  • Samples date :
    1-7days,Free with freight collect
  • Delivery date :
    10-15 days
  • MOQ :
    6ft-3000pcs/4ft-5000pcs
  • Packing :
    Export cartons,pallets,Express box,User-Defined
  • Shipping :
    By Sea,By Air,By FedEx
  • Payment :
    Wire transfer
What is RoHS REACH PAHS of power cords

Inquiry
Message
Description

Plug and Connector American UL 3 pins NEMA 5-15P plug, American Power Supply Cords with UL Certified List.
Built to NEMA 5-15P CSA CAN/CSA-22.2 No.21-95 standards.
Rated up to 10A, 13A, 15A 125V.
 Our USA NEMA 5-15P Plug, Ameri

Features
The quality is good,Durable,Environmental protecti
Details

usa-power-cords-plug-nema6-15p

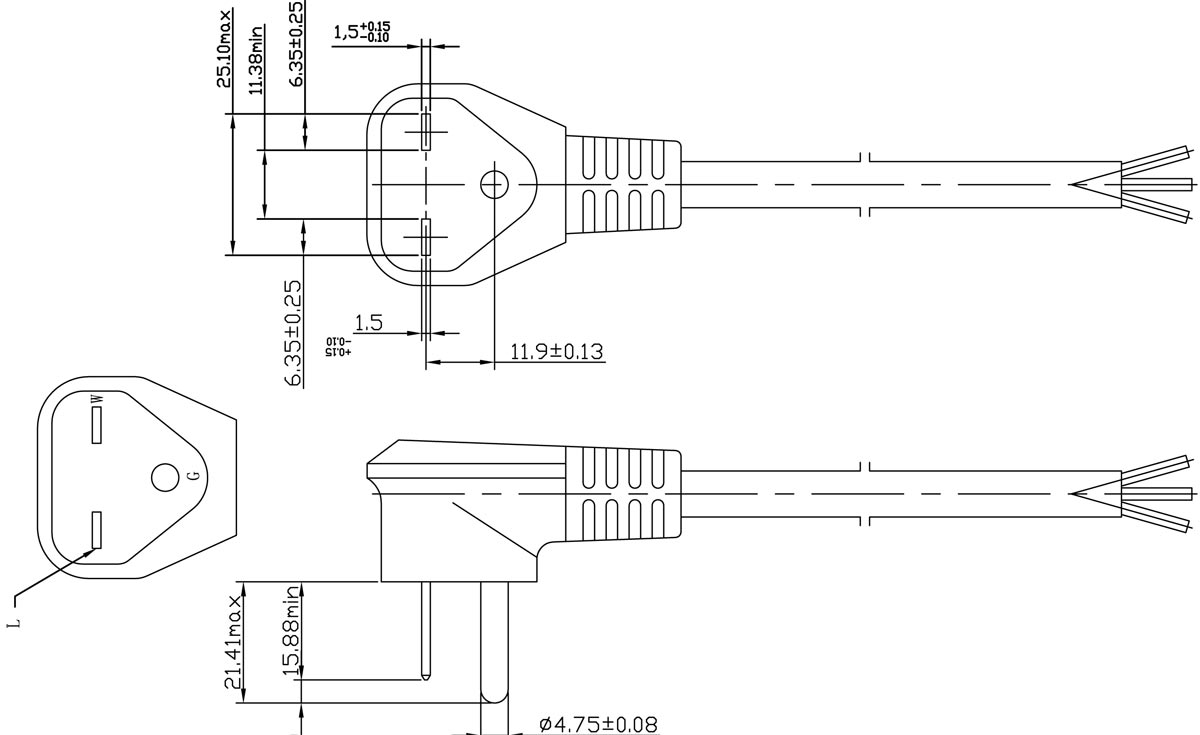

American Power Cords NEMA 6-15P Drawing (RoHS COMPLIANT)

American Power Cords NEMA 6-15P

NEMA5-15P Storage buckle/UL/CUL/UL cUL (NINGBO NINGYANG)

End and connector

American Power Cords NEMA 6-15P End Drawing (RoHS COMPLIANT)

American Power Cords NEMA 6-15P

NEMA5-15P Storage buckle/UL/CUL/UL cUL (NINGBO NINGYANG)

American Power Cords NEMA 6-15P
Specifications
  • (Model): NEMA5-15P Storage buckle
  • (Voltage): 125V
  • (Amperage): 13A
  • (Temperature Rating): 60°C
  • (Weight): 20g
  • (Color): User-Defined
  • (Cable Length): User-Defined
Material
  • (Plug Models Desc): Type 2P-E
  • (Plug Material): Nickel Coated Brass & PBT
  • (Cable Conductor Structure): 3 Poles 3 Wires
  • (Cable Insulating Sheath Material): PVC
  • (Cable Conductor Material): Oxygen free copper (OFCU)
Quality
  • (Approvals): UL/CUL
  • (Standard): UL cUL
  • (Quality System): ISO9001:2008
  • (Testing): SGS/TUV
  • (Environmental): ROHS,REACH,PAHS
  • (Environmental mark): What is RoHS REACH PAHS of power cords
More and more
  • (Patent): NYC
  • (Country of Origin): Made in China
Available Cord / Cables Wire Styles
  • Gauge/ # Conductors (Cord Type)

    3Cx18AWG, 3Cx16AWG (SPT-2, SPT-3)

    3Cx18AWG, 3Cx16AWG (HPN)

    3Cx18AWG (SVT, SVTO, SVTOO)

    3Cx18AWG, 3Cx16AWG, 3Cx14AWG, 3CX12AWG (SPT-3, SJT, SJTO, SJTW, SJTOO, SJTOW, SJTOOW)

Sea and air freight
American Power Cords NEMA 6-15P Sea and air freight
Free sample
American Power Cords NEMA 6-15P Free sample
