- Samples date :1-7days,Free with freight collect
- Delivery date :10-15 days
- MOQ :6ft-3000pcs/4ft-5000pcs
- Packing :Export cartons,pallets,Express box,User-Defined
- Shipping :By Sea,By Air,By FedEx
- Payment :Wire transfer

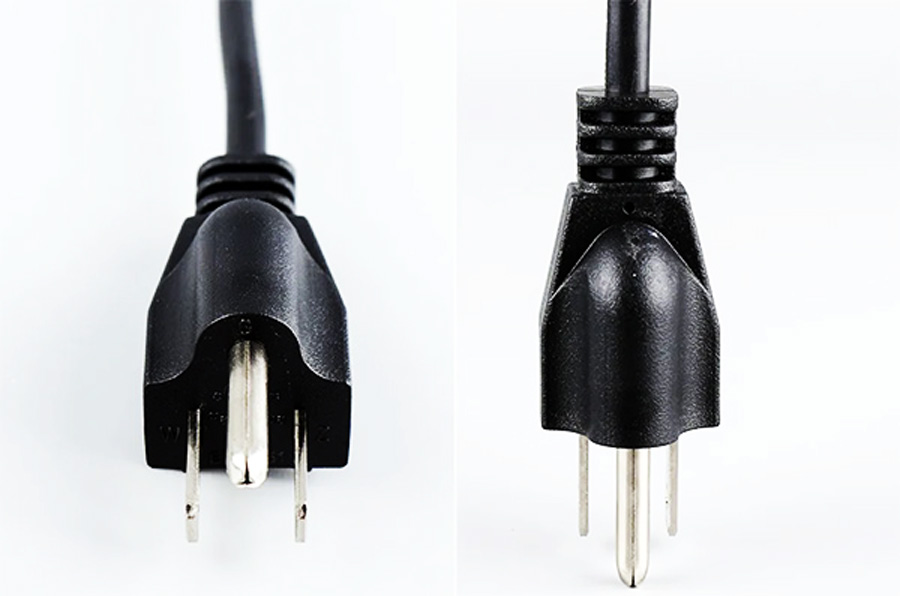

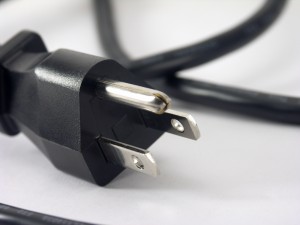

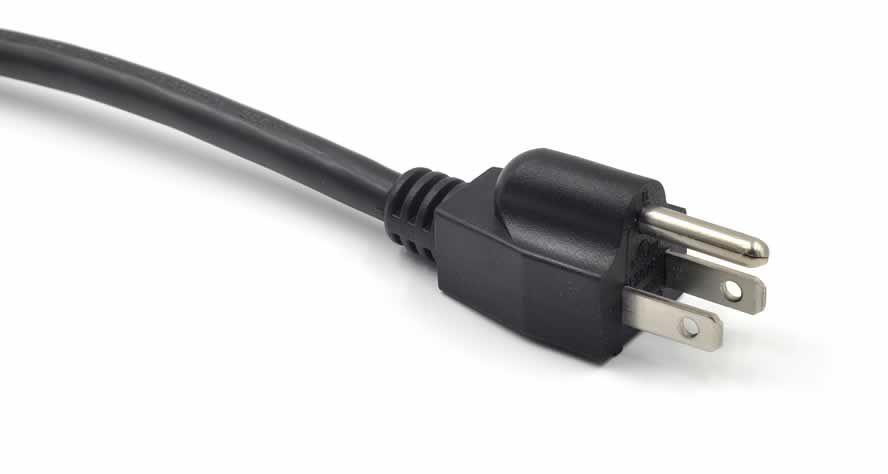

Plug and Connector American UL 3 pins NEMA 5-15P plug, American Power Supply Cords with UL Certified List.
Built to NEMA 5-15P CSA CAN/CSA-22.2 No.21-95 standards.
Rated up to 10A, 13A, 15A 125V.
Our USA NEMA 5-15P Plug, Ameri

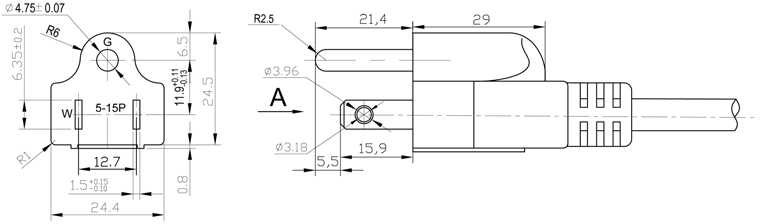

USA NEMA 5-15P Plug American Power Supply Cords Drawing (RoHS COMPLIANT)
NEMA5-15P/UL/CUL/NEMA 5-15P CSA CAN/CSA-22.2 No.21-95 (NINGBO NINGYANG)
USA NEMA 5-15P Plug American Power Supply Cords End Drawing (RoHS COMPLIANT)
NEMA5-15P/UL/CUL/NEMA 5-15P CSA CAN/CSA-22.2 No.21-95 (NINGBO NINGYANG)
- (Model)： NEMA5-15P
- (Voltage): 125V
- (Amperage): 10A 12A 13A
- (Temperature Rating): 60°C 105°C
- (Weight): 20g
- (Color): User-Defined
- (Cable Length): User-Defined
- (Plug Models Desc): Type 2P-E
- (Plug Material): Nickel Coated Brass
- (Cable Conductor Structure): 3 Poles 3 Wires
- (Cable Insulating Sheath Material): PVC, Rubber, Halogen-Free, Textile braid
- (Cable Conductor Material): Oxygen free copper (OFCU)
- (Approvals): UL/CUL
- (Standard): NEMA 5-15P CSA CAN/CSA-22.2 No.21-95
- (Quality System): ISO9001:2008
- (Testing): SGS/TUV
- (Environmental): ROHS,REACH,PAHS
- (Environmental mark):
- (Patent): NYC
- (Country of Origin): Made in China
Gauge/ # Conductors ( Cord / Cable Type )
3Cx18AWG 3Cx16AWG (SPT-2, SPT-3)
3Cx18AWG 3Cx16AWG （HPN）
3Cx18AWG（SVT, SVTO, SVTOO）
3Cx18AWG 3Cx16AWG 3Cx14AWG 3CX12AWG（SPT-3, SJT, SJTO, SJTW, SJTOO, SJTOW, SJTOOW）
- AC Power cords
- DC Power cords
- Power Extension cords
- Cables
- Cord sets
- Wiring Harness
- Terminal connector
- Transformer and Parts
