- Samples date :1-7days,Free with freight collect
- Delivery date :15-22 days
- MOQ :6ft-3000pcs/4ft-5000pcs
- Packing :Export cartons,pallets,Express box
- Shipping :By Sea,Air,TNT,FedEx
- Payment :Wire Transfer

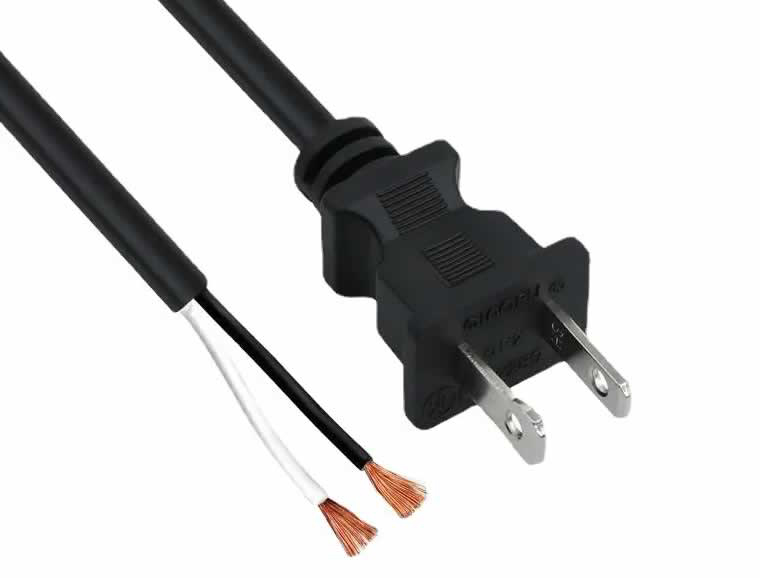

American Power Cord, Type A, UL certified 2 pins NEMA 1-15P Plug, Non-rewirable Without Earthing Contact, Moulded. Fully conforms to the NEMA 1-15P CSA CAN/CSA-22.2 No.21-95 plug standards and RoHS, REACH and PAHS compliant.

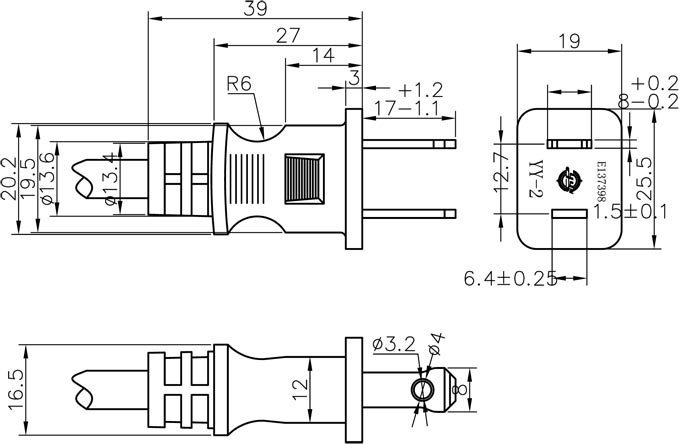

American Power Cord UL certified 2 PINS NEMA 1-15P Plug Drawing (RoHS COMPLIANT)
NEMA1-15P -2/UL/CUL/NEMA 1-15P CSA CAN/CSA-22.2 No.21-95 (NINGBO NINGYANG)
American Power Cord UL certified 2 PINS NEMA 1-15P Plug End Drawing (RoHS COMPLIANT)
NEMA1-15P -2/UL/CUL/NEMA 1-15P CSA CAN/CSA-22.2 No.21-95 (NINGBO NINGYANG)
- (Model)： NEMA1-15P -2
- (Voltage): 125V
- (Amperage): 5A
- (Temperature Rating): 60°C 105°C
- (Weight): 20g-50g
- (Color): B&W,User-defined
- (Cable Length): User-defined
- (Plug Models Desc): Type 2P
- (Plug Material): Nickel Coated Brass & PBT
- (Cable Conductor Structure): 2 Poles 2 Wires
- (Cable Insulating Sheath Material): PVC, Rubber, Halogen-Free, Textile braid
- (Cable Conductor Material): Oxygen free Copper (OFCU)
- (Approvals): UL/CUL
- (Standard): NEMA 1-15P CSA CAN/CSA-22.2 No.21-95
- (Quality System): ISO9001:2008
- (Testing): SGS/TUV
- (Environmental): ROHS,REACH,PAHS
- (Environmental mark):
- (Patent): NYC
- (Country of Origin): Made in China
Gauge/ # ConductorsCord / Cable Type
2Cx18AWG, 2Cx16AWG SPT-1, SPT-2, SPT-3
2Cx18AWG, 2Cx16AWG NISPT-1, NISPT-2, NISPT-3
2Cx18AWG, 2Cx16AWG HPN
2Cx18AWG, 2Cx17AWG, 2Cx16AWG SVT, SVTO, SVTOO
2Cx18AWG, 2Cx16AWG, 2Cx14AWG SJT, SJTO, SJTW, SJTOO, SJTOW, SJTOOW
